How does the In&box work?

The In&box is the detection device enabling the airbag system to function and is exclusively compatible with the In&motion airbag system.

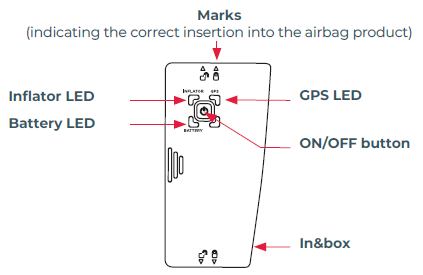

In&box basics

If the In&box serial number starts with 54XXXXXX

For first use, turn on your In&box using the side switch. If the side switch is already ON, perform a quick double press on the central button.




If the In&box serial number starts with 63XXXXXX

For first use, perform a quick double press on the central button.




In&box functions

The In&box has three different functions:

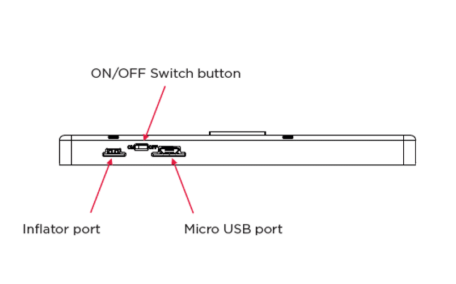

Activation by the ON/OFF side switch (available on In&box with serial numbers starting with 54XXXXXX)

The main switch located on the left side of the In&box allows it to be turned on only during the first use. Be careful not to turn off the In&box using the side button without first turning it off by double-clicking the central button. Never turn off the In&box using the side button during an update (blue flashing of the upper LEDs).

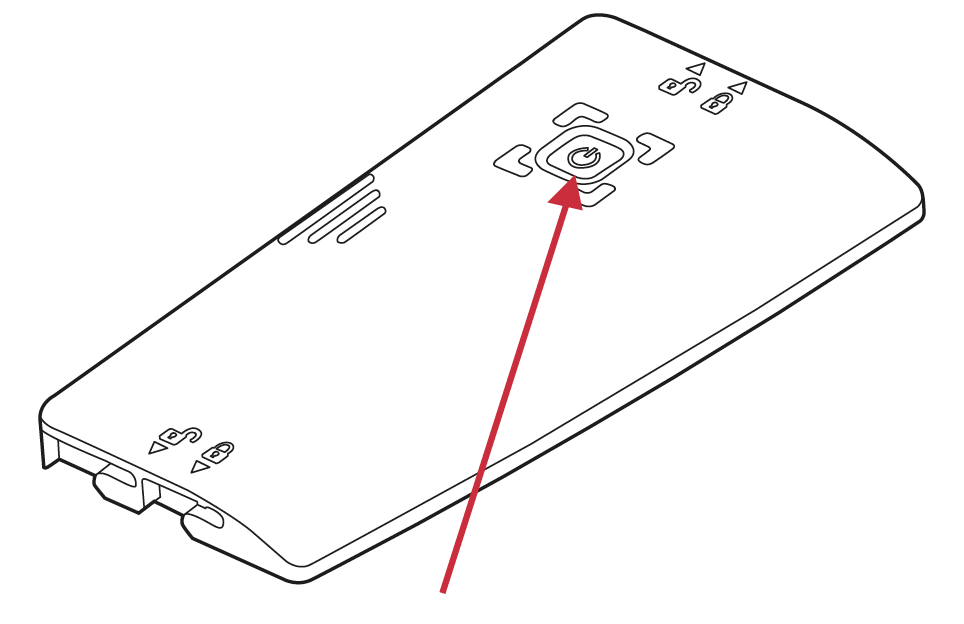

Quick double press on the central button

Once the In&box is turned on by the side switch to ON, a quick double press on the central button of the In&box will allow you to turn it on and off without having to remove the unit from its mount.

You can also turn the In&box on or off directly from the My In&box mobile app.




Automatic standby

This function allows the In&box to automatically enter standby mode when it detects being stationary for more than 2 minutes. No need to remember to turn it on or off, it will wake up automatically at the slightest movement. However, be careful to place it on a completely stationary surface. Make sure to turn off the In&box using the central or side button during transport or when the airbag product is not worn (topcase, etc.).




LED meanings (lighting code)

Here are the different LED colors you may see on your In&box:

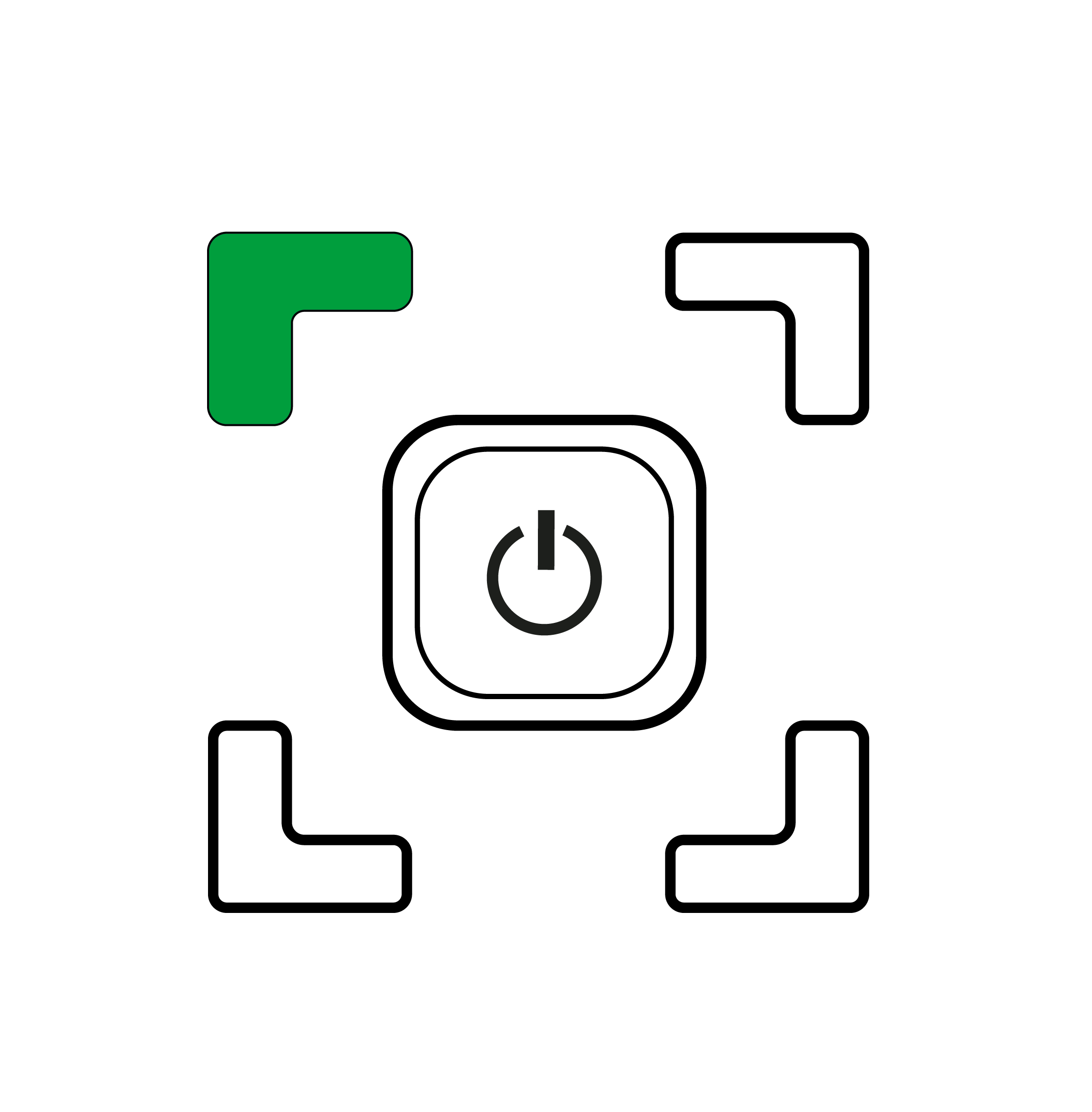

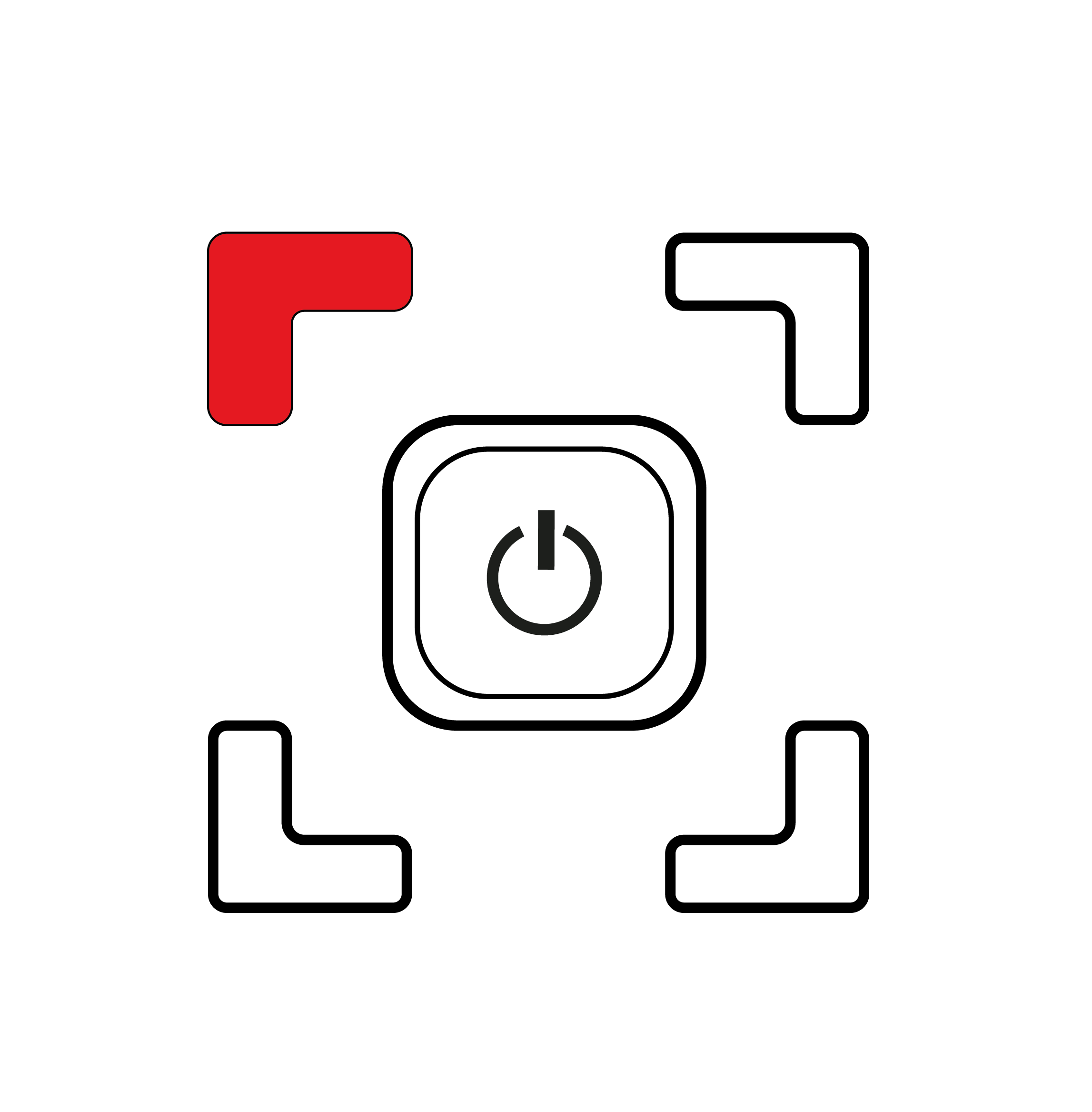

LED inflator (the in&box is in the airbag product)




LED GPS




LEDs inflator and GPS

When both upper LEDs flash red, the airbag is not functional!

  • Check your In&motion subscription.
  • Connect your In&box to your mobile app or via Wi-Fi.
  • Contact us if the issue persists.





Battery LED

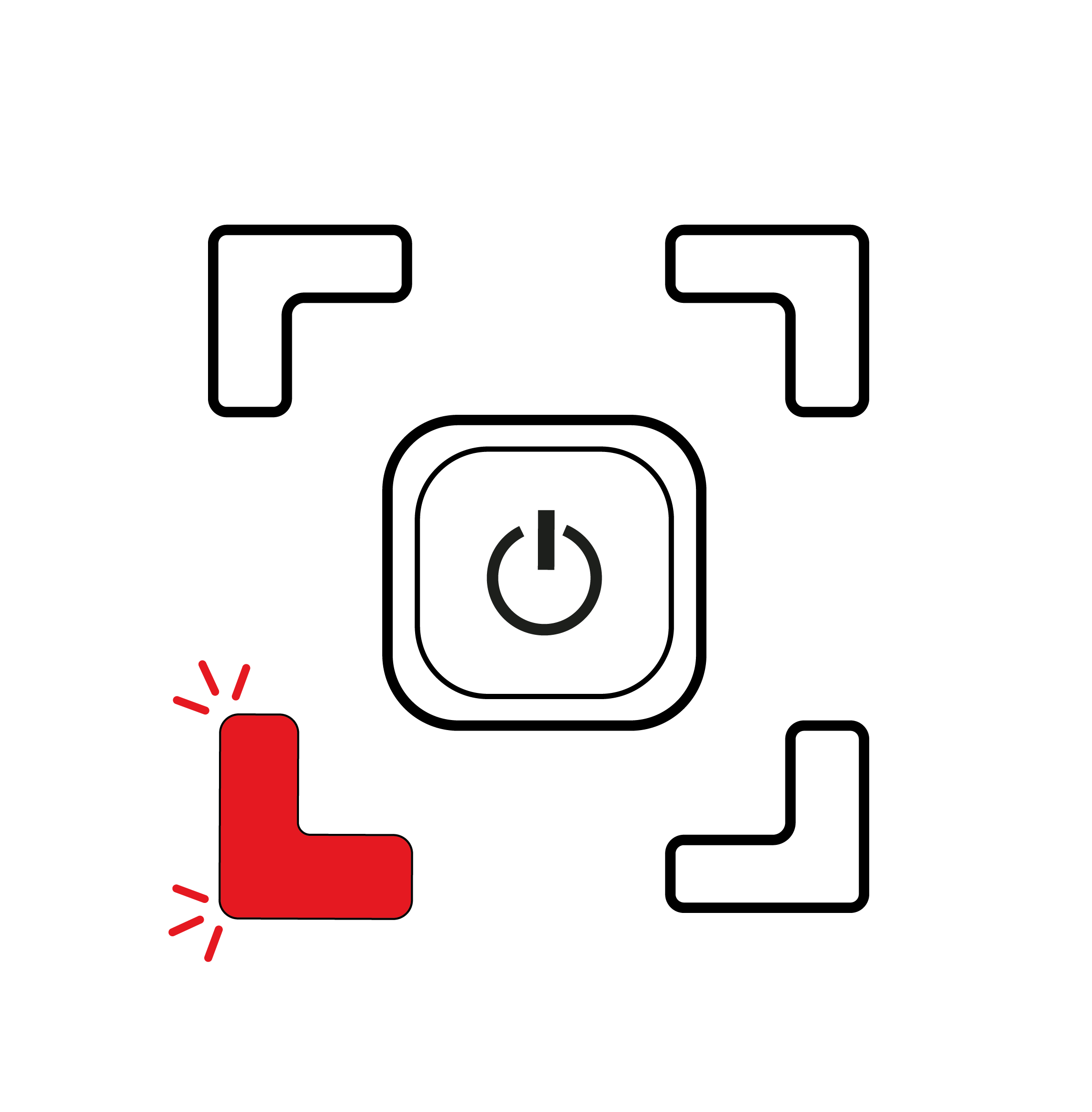

  • Battery below 5% (red flashing). Charge the In&box!

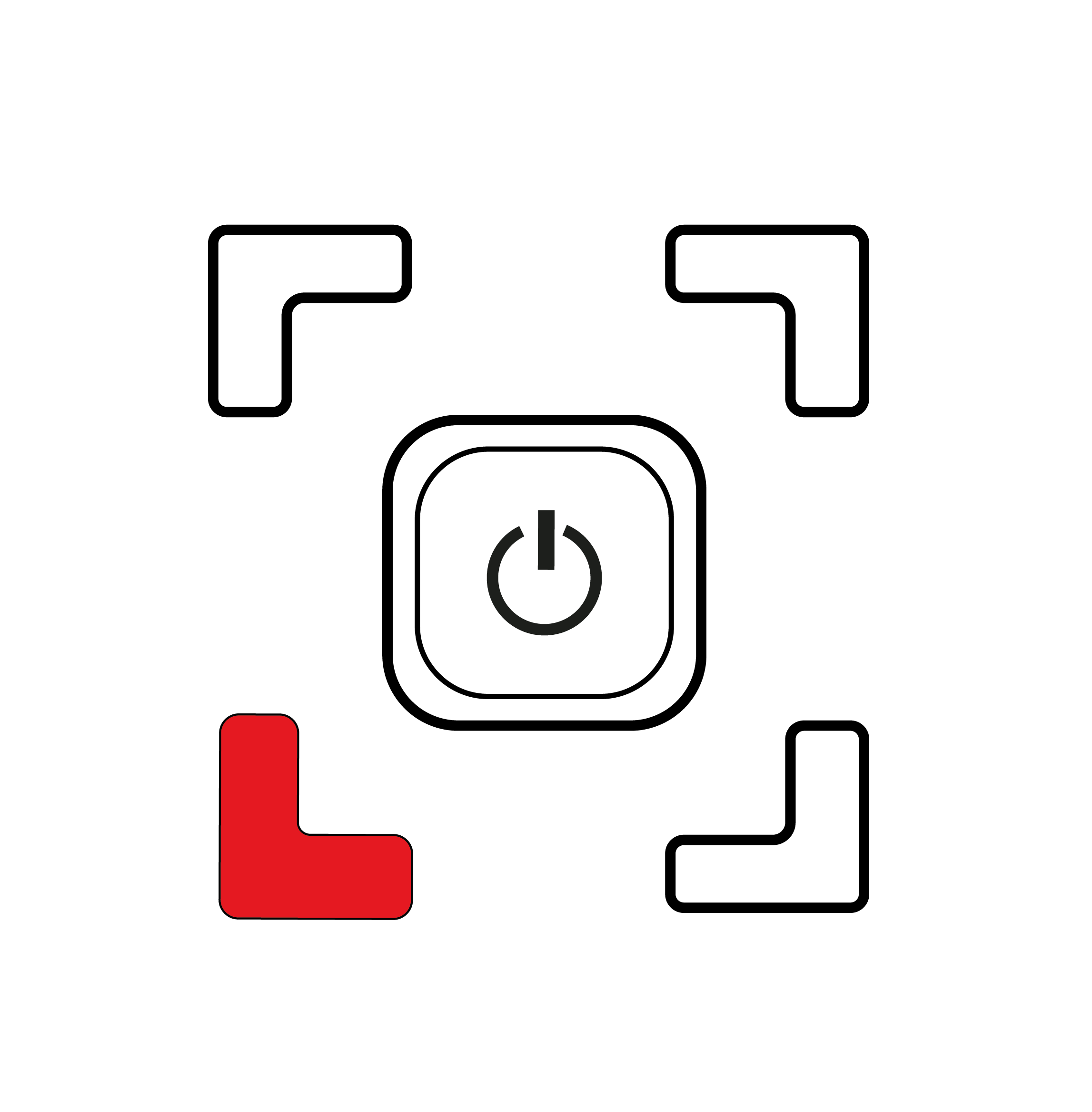

  • Battery below 30%. (about 5 hours of remaining use.

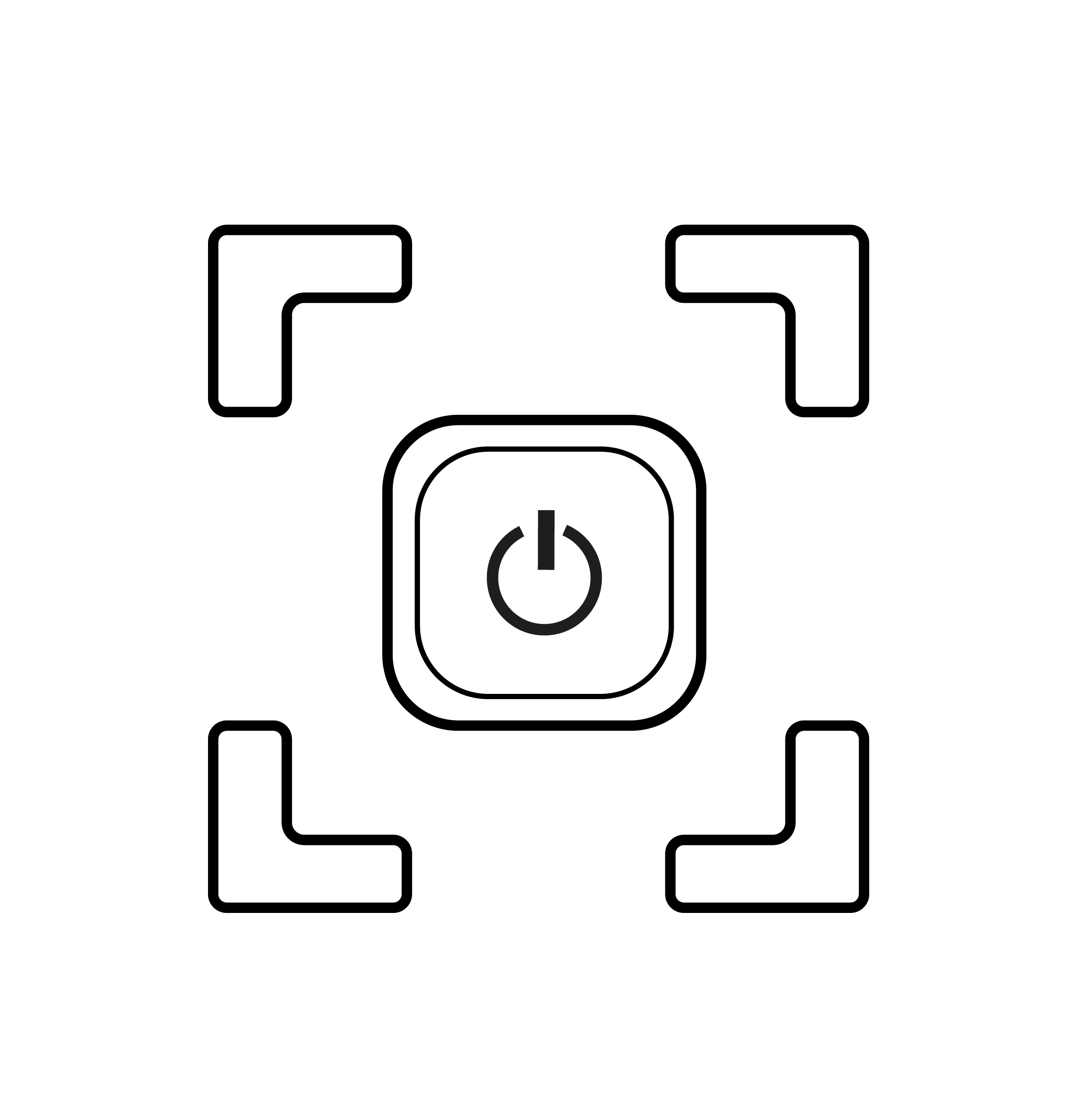

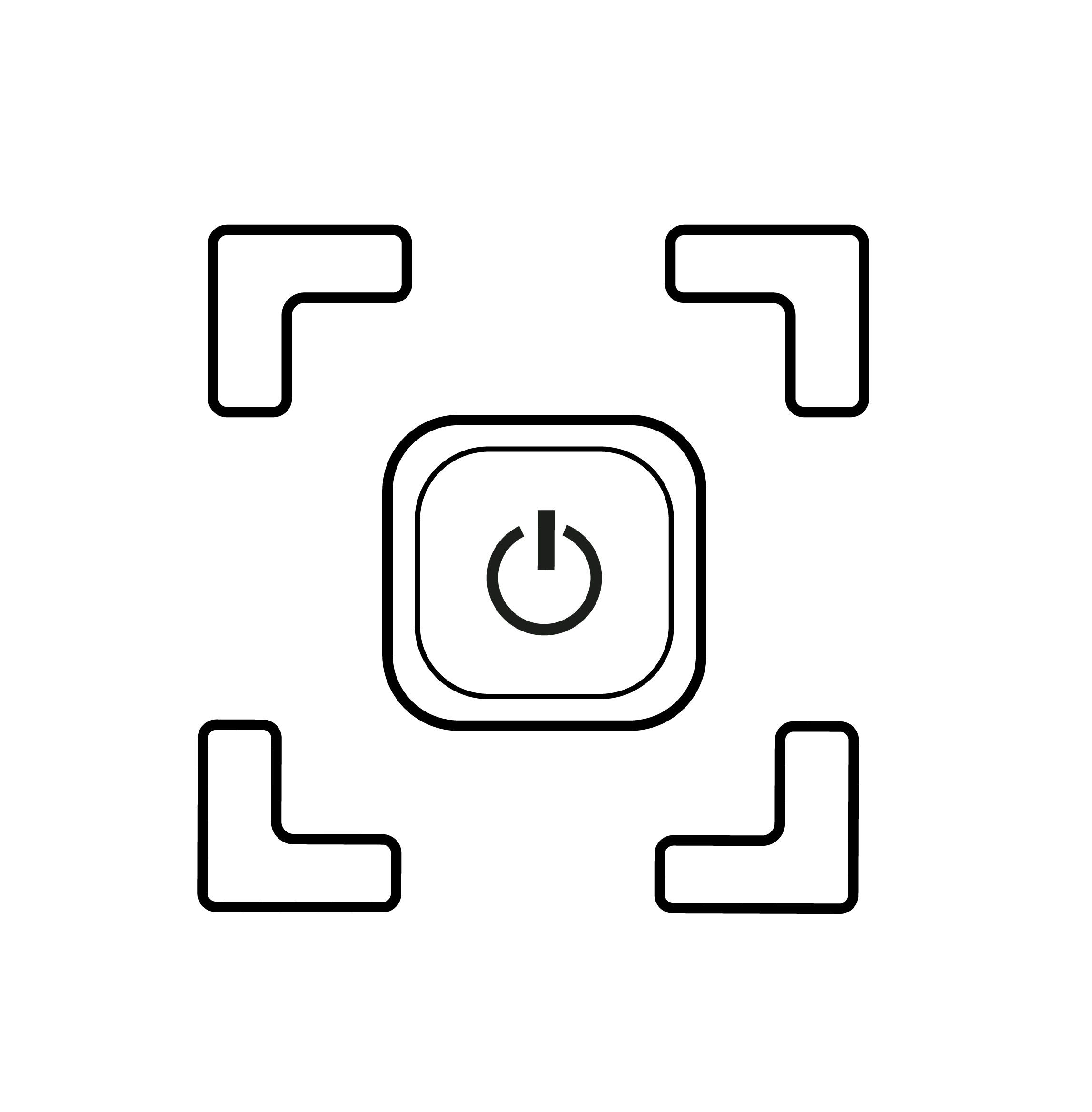

  • Battery charged (30 to 99%) or In&box turned off.



  • Battery charging (In&box connected).

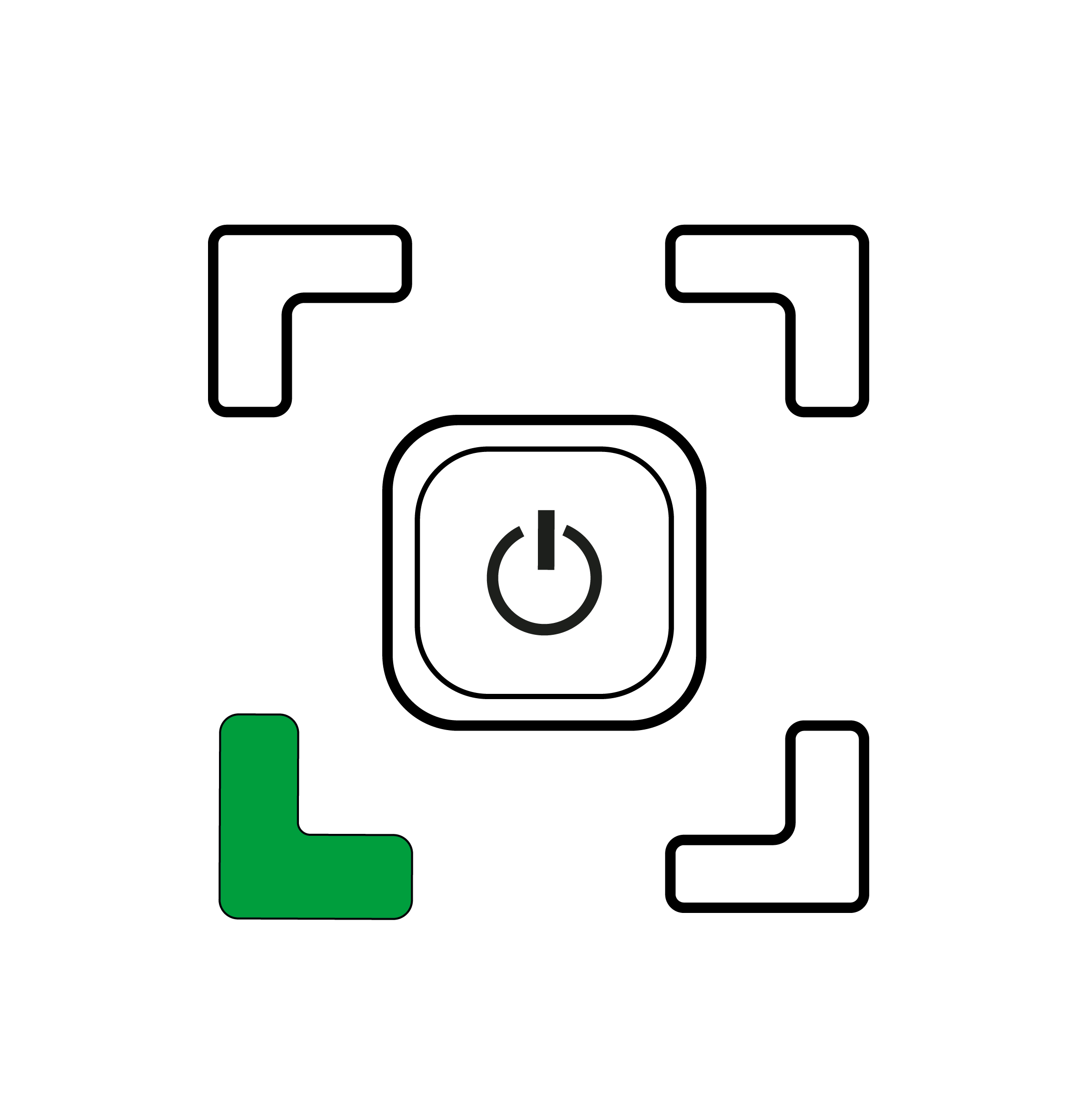

  • Battery charged to 100% (In&box connected)



Wi-Fi Connection

  • The two upper LEDs flash blue alternatively: the In&box is trying to connect to your Wi-Fi access point.
  • The two upper LEDs flash blue simultaneously: the synchronization and update procedure is in progress.


Be careful not to turn off the In&box using the side switch when the LEDs are blue!



If you encounter problems with the In&box or if the LEDs show strange behavior, refer to the article on In&box malfunctions or contact us directly if the problem persists.
